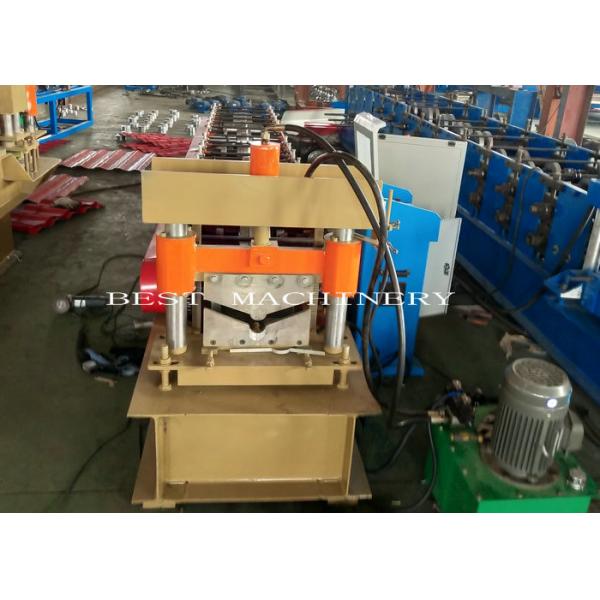

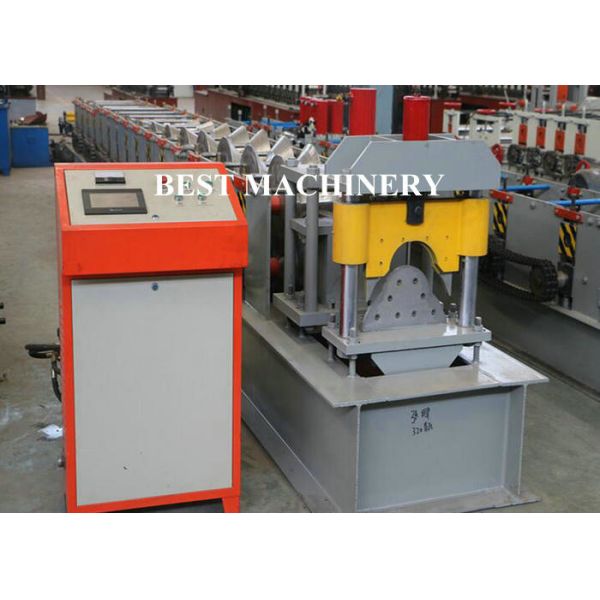

Cold Roll Color Steel Metal Roof Ridge Cap Forming Machine hydraulic Cutting

Cangzhou Best Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Cangzhou Best Machinery Co., Ltd
City: Cangzhou
Province/State: Hebei
Country/Region: China
Contact Person:Mr Arno Hao

Cold Roll Color Steel Metal Roof Ridge Cap Forming Machine hydraulic Cutting

Brand Name : CHBEST
Model Number : YX321
Certification : CE/BV/SGS
Place of Origin : HEBEI CHINA
MOQ : 1set
Supply Ability : 15sets/month
Delivery Time : 35days
Packaging Details : naked
Name : Color Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine
Usage : roof ridge cap
Power : 8.5kw
Speed : 8-12m/min
Cutting type : hydraulic
Language : chinese and enlgish
Contact Now

Color Steel Metal Roof Ridge Cap Tile Cold Roll Forming Machine


Working flow:

Decoiler------feeding------roll forming------cut to length-----output table


Machine components list:

NameNO.Unit
1.De-coiler2set
2.Forming machine1set
3.Cutting device1set
4.PLC control box1set
5.Hydraulic pump station1set
6.Production support table1set

Parameter


Manual decoiler:

Dimensions: 1700mm*1000mm*800mm

Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 480-570mm
Maximal out diameter: 1500mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual


Forming section

Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
Feeding type: adjustable
Feeding width:900-1300mmmm
Entrance and guide roller: diameter is ¢76mm, material is SAE1045,surface with chrome

Cutting :

Cutting after forming: Cut the sheet after roll forming to required length.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,4KW
Working pressure: 12Mpa adjustable

Length measuring: Automatic encoder length measuring, Brand: Omron
The cutting sequence is also contained and controlled by the same PLC program


out table:

Jointed by 60mm*40mm tube
Size: 1.0m long*0.8mwide*0.6-1mhigh
One out table with two support roller

Two sets.

Hydraulic station:

Hydraulic power: 4kW
Working pressure: 12Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)

Control carbinet:

1)Programmable setting of profile length and quantity

2)Automatic stopping of the equipment after completion of the cutting programme.

3)Operating system language: English and Chinese

4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview

Spare parts

Chain x 1, bearings x1, limit switch x1


Working conditions
1.working size20m x 5m x 4m
2.Power supply6kw
3.Frequency50-60HZ
4.Wires/cables4-6mm²(length according to workshop)
5. Labor cost2 workers
6. ToolsSpanners and screwdriver
7.Lift device3-5t forklift or crane


Customer Visited



Package

1.one 40ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.
