Galvanized Steel Roller Shutter Door Frame Roll Forming Machine Window Type

Cangzhou Best Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Cangzhou Best Machinery Co., Ltd
City: Cangzhou
Province/State: Hebei
Country/Region: China
Contact Person:Mr Arno Hao

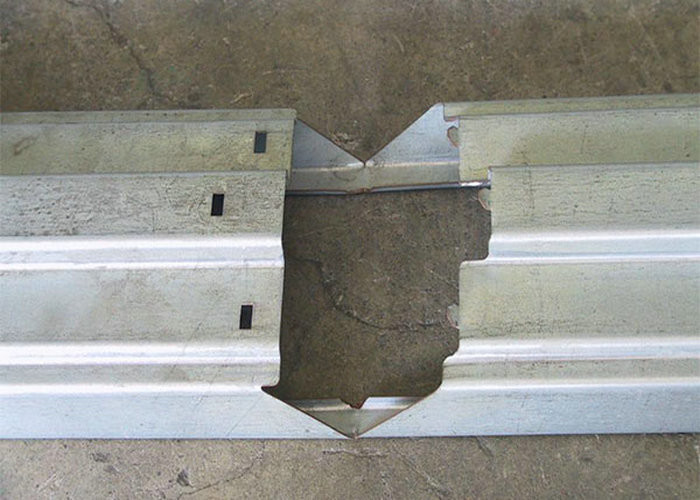

Galvanized Steel Roller Shutter Door Frame Roll Forming Machine Window Type

Brand Name : CHBEST
Model Number : XY 85
Certification : CE/BV/SGS
Place of Origin : China Hebei
MOQ : 1 set
Supply Ability : 20 sets/month
Delivery Time : 30-40 days
Packaging Details : plastic film for naked machine
Product name : Galvanized Steel Roller Shutter Door Window Frame Roll Forming Machine
Color : Blue or according to your request
Driven system : Chain or gear box
Cutting type : Hydraulic
Shaft diameter : 70mm
Power : 11kw
Contact Now

Galvanized Steel Roller Shutter Door Window Frame Roll Forming Machine


Working flow


Decoiler---------leveling--------punching---------roll forming--------cut to length----------output table


Machine components:


No.NameQty.
1Decoiler1set
2Feeding and guiding device1set
3Roll forming machine1set
4Punching machine with servo feeding1set
5Hydraulic cutting device1set
6PLC control box1set
7output table1set


Techincal description:


A Manual decoiler


(1)Inner Diameter: Φ450 – Φ550 mm
(2)Out Diameter: 1500 mm
(3)Max. Loading Capacity: 3000 kg


B. Main roll forming


1. Number of forming groups:
18 groups
2. The machine material:
welding comprise of 12 square tube
3. The wallboard:
processing compose of 25mm steel plate
4.The mold:
The mold is made of Gcr12mov steel, processed after rough turning, finish turning, finish grinding, hard chrome plating to ensure that the mold no deformation, glabrous, wearable and accurate.
5.The shaft:
The shaft is made of 45#steel, diameter of 58mm, finish turning, finish grinding after heat treatment, quenching and high temperature tempering.
6. The bearing:
Harbin type 6209
7. The rolling material:
0.7-1.0mm galvanized steel sheet.
8. Motor:
7.5kw * 1 set (380v)
9. Transmission:
1.5 inch chain
10. Discharge rack:
1 set
11. Machine feature:
PLC NC frequency electrical boxes, touch screen`s display, the encoder counting, the length and quantity of the material is controllable, accuracy with in 1.0mm, automatic hydraulic cut.

C Cutting device


1)Cutting: Hydraulic cutting

2)Auto cutting when reach the set length.

3)Hydraulic power: 7.5KW

4)Blade material: Cr12,quenched 55°-60°

5)Working pressure:16mpa

6)Cutting tolerance: +/- 1.5mm


D Punching


1) Hydraulic punching AFTER roll forming

2) Power:7.5kw


E Control system

(1) Electrical Control: PLC Frequency Control System with touch screen

(2) Voltage: 380V/3Ph/50Hz(or as your local standard)

(3) Length Error: ±1mm


F. Output Table

(1) It is simple and used to load finished product

(2) Length: 4m





Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
After-sale Service :
Any questions, contact us by WhatsApp or Telephone.
